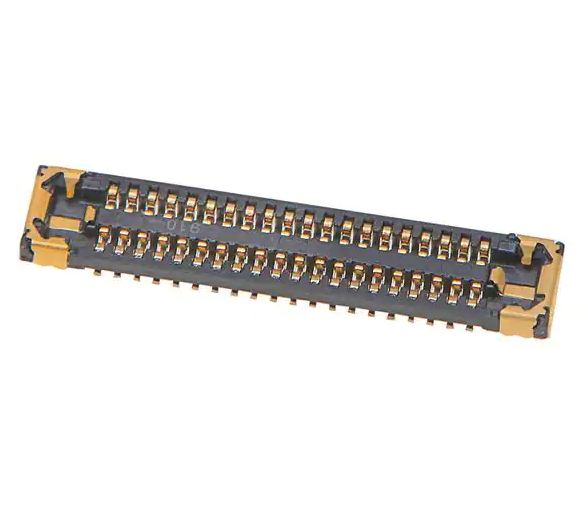

ACB6+ Series fully armored SlimStack Board to Board Connector
Molex's ACB6+ Series SlimStack board-to-board Connector offers upgraded performance with up to 5.0A power stud fully armored housing protection. With 0.35 mm pitch and 0.60 mm height, the connector provides plug-in guidance and electrical contact guarantees for superior reliability in challenging applications.
The contact area is separated from the welding area (terminals and nails are separated by nickel insulation) to prevent tinning and interference, providing a reliable connection. The fully armored design wraps the connector from the inside out to prevent damage during assembly. Wide alignment performance provides easy plugging, and power pin construction enables power transmission up to 5.0A to meet customer requirements for high-power applications.
Market and application
● Consumer electronics
- Smart phone
- Tablet computer
- Wearable equipment
- Portable sound equipment
- Portable navigation AIDS
- Internet of Things and smart home devices
- AR/VR devices
- 5G and RF devices
- Drone
● Medical equipment
- Patient monitoring equipment
- Therapeutic and surgical equipment
● National defense
- Driverless car
- Aircraft avionics
