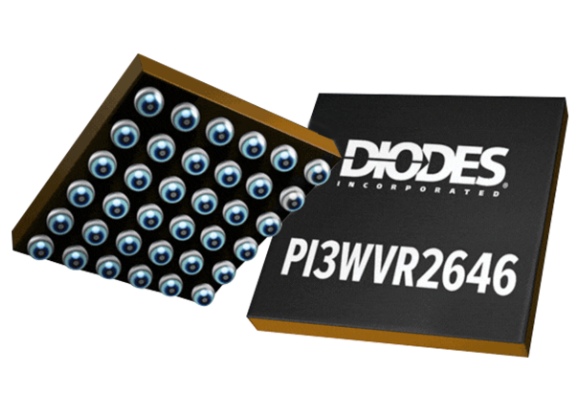

Diodes Incorporated PI3WVR2646 analog switch IC

Diodes Incorporated PI3WVR2646 analog switching IC is optimized for switching between two high speed (HS) or low power (LP) mobile Industrial Processor interface (MIPI) signals. The switch is a four-data channel MIPI-D-PHY and 10-channel single pole double throw (SPDT) switch.

The PI3WVR2646 analog switch IC is designed for use with the MIPI specification and can be connected to CSI or DSI modules. The PI3WVR2646 IC has SPDT (10x) switch type and signal type support for D-PHY and C-PHY, with a typical offset of 6ps for the opposite conversion of the same output. PI3WVR2646 analog switch IC's operating voltage range VDD is 1.5V to 3.6V, input diode current is -50mA, and DC output current is 25mA. The PI3WVR2646 IC is ideal for tablets, laptops, and monitors.

Features

● SPDT (10x) switch type and signal type support D-PHY and C-PHY
● Data Rates: D-PHY (2.5Gbps) 4 data channels and C-PHY (2.5Gsps) 3 data channels
● Support 2:1 clock differential signal
● Opposite conversion offset for same output: 6ps (typical)
● Lead-free, in full compliance with RoHS
● Free of halogens and antimony

Applications

● Cellular phones and smartphones
● Tablet computer
● Laptop
● Display

Specification

● Low crosstalk: -30dB (1.25GHz)
● Input signal: 0V to 1.3V
● LP and HS MIPI RON: 6Ω (typical value)
● LP and HS MIPI ∆RON: 0.1Ω (typical value)
● LP and HS MIPI RON FLAT: 0.3Ω (typical value)
● ICCZ: 0.5uA (typical value)
● ICC: 32μA (Max.)
● CON: 1.5pF (typical value)
● Operating voltage range VDD: 1.5V to 3.6V
● Power supply voltage range: -0.5V to 4.5V
● Input diode current: -50mA DC
● Output current: 25mA DC
● 2kV HBM ESD tolerance
● Storage temperature range: -65°C to +150°C
● Junction temperature: 125°C
