ECX-2236B SMD crystal with high stability and low aging

The ECS extended ECX-2236B series of surface mount crystals includes a higher development frequency, retaining the load capacity and temperature range options of previous versions. In the selected ECX-2236B part number, the customer may order a TR3 part number indicating 3,000 reels instead of the standard 1,000 reels.

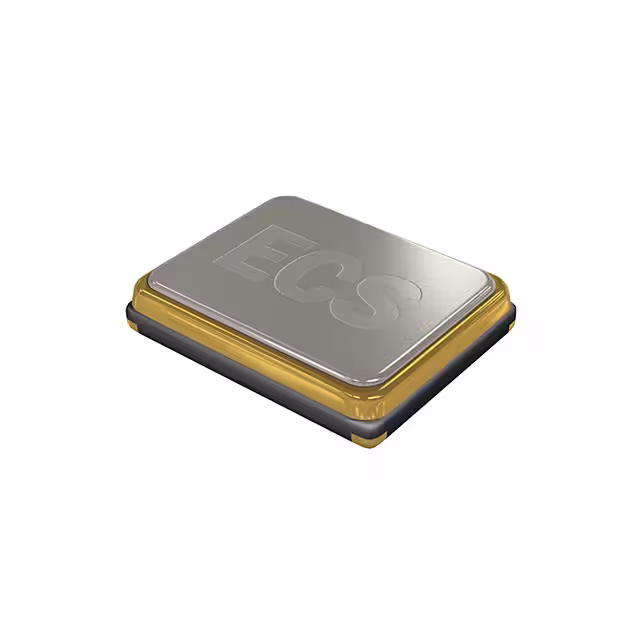

The ECX-2236B series of ECS comes in an industry-standard 2.5mm x 2.0mm x 0.55mm 4-pad package. These electronic components offer a wide frequency range, high stability of ±10 ppm, and first-year aging as low as ±1 ppm (at +25 ° C ±3 ° C temperatures), with the option to extend the temperature range. The standard ECX-2236B crystal offers a ±10 ppm frequency tolerance and a standard crystal load capacitance range. The component is ideal for Internet of Things, wireless and wearable applications.

Features

● The package is 2.5 mm x 2.0 mm x 0.55 mm
● Frequency range: 12 MHz to 60 MHz
● ±10 ppm standard frequency tolerance, with a ±7 ppm option
● ±10 ppm standard stability
● First year aging as low as ±1 ppm (Max.) (at +25ºC ±3ºC)
● Standard operating temperature: -30ºC to +85ºC
● Provides the option to extend the temperature range
● Low ESR
● Comply with RoHS 3 and REACH specification

Applications

● Internet of things
● Industrial application
● wireless
● Mobile device
● Wearable device
● Wi-Fi
● Bluetooth
