Laird Connectivity FlexPIFA 2-dBi and 3-dBi antennas for Wi-Fi and Bluetooth applications

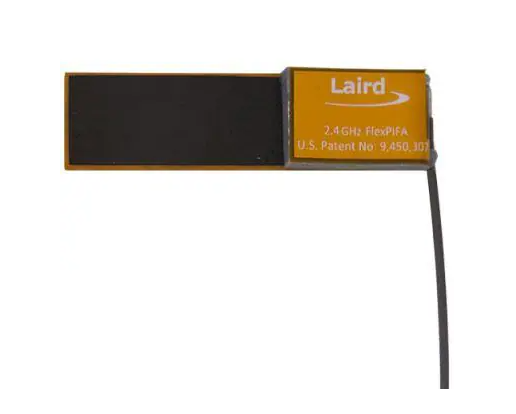

     Laird Connectivity FlexPIFA™ 2-dBi and FlexPIFA 3-dBi antennas equipped with MHF1/U.FL cable. The industry-leading flexible planar inverted F antenna (PIFA) is designed for Wi-Fi or Bluetooth applications and can be installed on non-conductive or irregular surfaces even when exposed to humidity. It operates at temperatures ranging from -40℃ to +85℃.

     Laird Connectivity FlexPIFA 2-dBi and 3-dBi antennas provide stable performance in a variety of environments, enclosures and even wearables. The 2-dBi FlexPIFA antenna is an ultra-small (40.1mm × 11mm × 2.5mm), single-frequency (2.4GHz) device that provides 2-dBi peak gain, linear polarization, and 50W impedance, ideal for Wi-Fi 802.11b/g/n and Bluetooth applications.

     The 3-dBi FlexPIFA antenna has dual-frequency (2.4/5.5GHz) performance and an external dimension of 38.5mm × 12.7mm × 2.5mm, providing 3-dBi peak gain and 50W impedance. The antenna is also ideal for Wi-Fi 802.11b/g/n and Bluetooth applications, as well as traditional Wi-Fi 802.11a applications. With robust performance and ease of installation, the FlexPIFA family of antennas is the ideal solution for Internet of Things (IoT) and harsh environment design applications.
