NXP Secure and reliable multi-gigabit Automotive Ethernet switches with advanced startup security features

● Up to six IEEE 100BASE-T1 PHyS
● Single IEEE 100BASE-TX PHY
● Up to two MII/RMII/RGMII interfaces
● Up to four SGMII interfaces
● A host controller based on Arm® Cortex®-M7

NXP's SJA1110 family of Automotive Ethernet switches provides a rich set of security, safety and TSN features. The device is available in four models, each capable of supporting flexible modular ECUs designs for gateway, ADAS and infotainment applications. Innovative features such as frame checking up to 128 bytes wide and two SGMII interfaces that operate at speeds up to 2.5 Gbit/s enable efficient cascading and connection to host controllers.

Flexible boot options allow configuration by selecting an external NVM or by an external host controller. Advanced security features allow the secure startup mode to verify the firmware before execution. SJA1110 has a functional safety ASIL B rating. This applies to the entire chip except the Arm kernel.

Features

● vIntegrated 100BASE-T1 and 100BASE-TX PHY
● Integrate the Arm Cortex-M7 kernel
● Very good packet detection and DoS prevention function
● Advanced security startup function
● Innovative Automotive Ethernet features safety features up to ASIL B
● Rich time sensitive network standards
● Rich NXP original AVB and AUTOSAR software

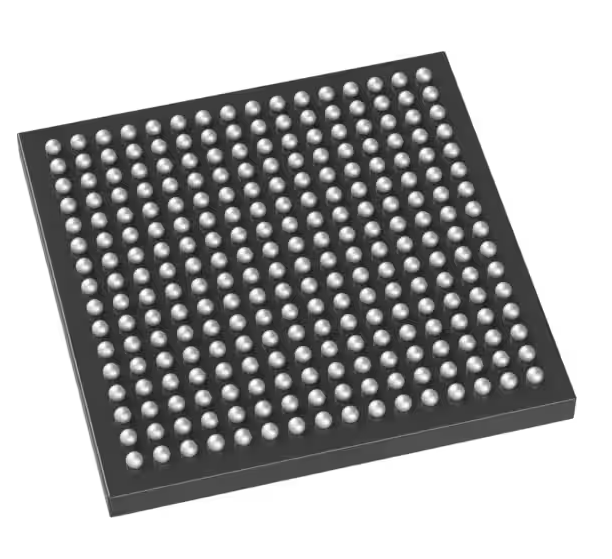

● 14 mm x 14 mm LFBGA 256 package with 0.8mm pitch
● Adopt S32G car networking processor and VR5510 power management unit complete system solution

Applications

● Automotive application
-   Gateway, ADAS box, infotainment unit
-   Telematics unit (connecting multiple SOCs to a shared PHY)
-   Ethernet technology is also increasingly used in body/chassis/powertrain domain controllers
-   Area controller
● Non-automobile market
-   Various industrial machinery and robots (e.g. connecting cameras, controllers, etc.)
-   Large unmanned aerial vehicle
-   Airports and large buildings (such as speaker networks, surveillance networks, and elevator systems)
-   Aircraft (Infotainment and control Network)
