Pulse Electronics' high performance FPC antenna
The W3961 series of high-performance, high-efficiency antennas produced by Pulse Electronics, a YAGEO company, takes the low-latency iot capabilities of 5G networks to the extreme. With the launch of mid-frequency 5G spectrum (3.7GHz to 3.98GHz) from AT&T and Verizon, also known as C-band, the antenna becomes ideal for dedicated cellular networks, robust iot applications, interactive self-service terminals, public safety and more.

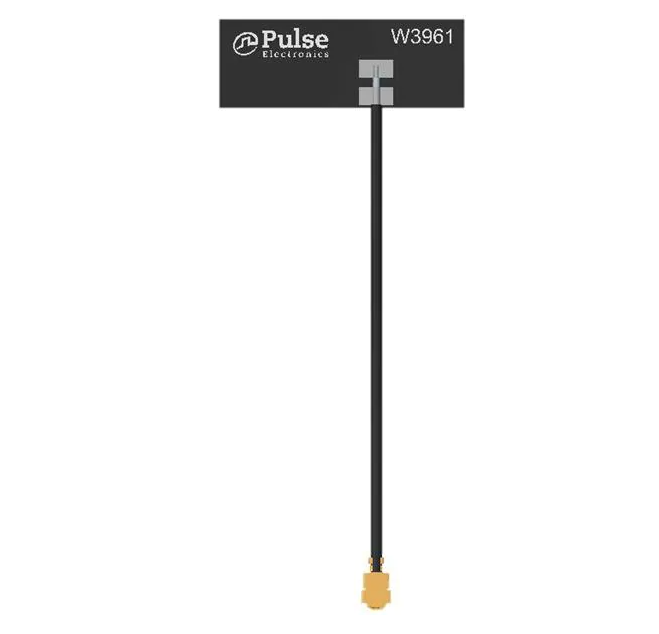

The W3961 is a high performance FPC antenna with narrow bandwidth, focused on CBRS or C-band, with over 70% efficiency and peak gain of 4.5dBi. The antenna is made of flexible PCB material that can be bent or folded to fit in extremely narrow Spaces. It can be easily integrated into a variety of covert, poreless solutions for a variety of IoT/M2M applications. The custom manufacturing capability enables design flexibility with cable length and connector type customization options.
Features
● Independent of the ground plane
● Flexible PCB design suitable for narrow space
● Small base surface: 25.1mm x 9.1mm
● High gain: 4.5dBi peak gain
● Excellent efficiency, more than 70% in the specified frequency band
Applications
● Private cellular network
● Robust Internet of Things applications
● Interactive self-service terminal
● Public security
