Schaffner's three-phase compact lightweight filter is suitable for industrial equipment with limited space

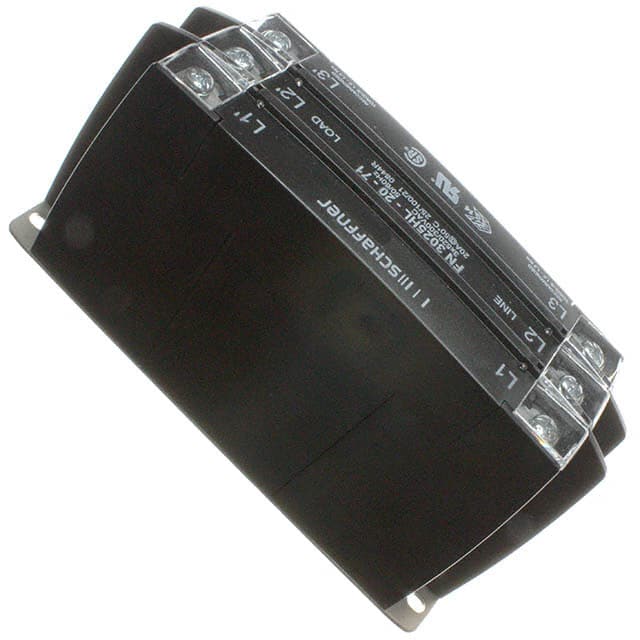

Schaffner's FN3025 and FN3026 are designed for small and medium-sized industrial equipment with limited space. They provide very low leakage current. The DIN rail version (FN3026) is suitable for the popular TS 35 DIN rails on panel buildings and electrical cabinets. HP type has slightly better performance than HL type and higher ground leakage rate.
They are rated at 520 volts. They have 10a, 20a, 30a, 40a(recently launched) and 50a current ratings. The plastic casing and metal flooring are cleverly combined to achieve the lowest possible product weight without compromising EMC performance. All models are CE, UL, CSA, UKCA, and ENEC approved and RoHS compliant.
Features
● Embedded jump-terminal system
● Captive hinged protective covers
● Very low earth leakage
● Plastic housing
● Lightweight
Applications
● Automation and control
● Motor drives, servo drives, stepping motors
● Three-phase power supplies
● Panels and electrical cabinets
● Semiconductor manufacturing equipment
