XP Power's converters are designed for medical applications

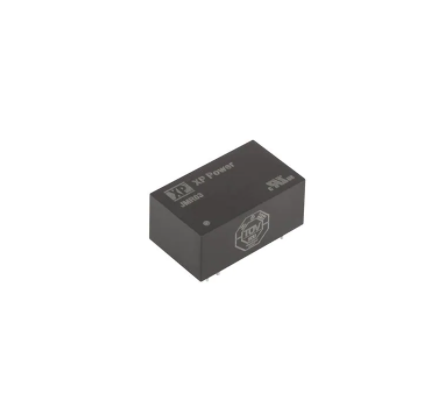

XP Power's JMR03 series ultra-compact DC/DC converters are medically certified and designed for BF and CF grade applications. From DIP24 to DIP16 modules, the base surface of JMR03 is reduced by 45%, thus providing more PCB space for the user's components. The wide input range of 4:1 provides flexibility in power selection.

Reduced no-load input standby current provides longer run times in portable battery applications. The low leakage current of only 2 µA, 5 kV isolation voltage, high MTBF of 700 khrs, and 2x MOPP make JMR03 ideal for critical applications, including respiratory therapy, surgical tools, oximeters, dental and cosmetic ("Thuzzle") applications. JMR03 Series DC/DC converters have global Medical Device safety certification and IEC 60601-1-2 Ed 4.0 EMC certification.

Features

● Ultra compact DIP16 package
● Wide 4:1 input range: 4.5 VDC to 18 VDC, 9 VDC to 36 VDC, and 18 VDC to 75 VDC
● Single output voltages: 5 V, 12 V and 15 VDC
● Dual output voltage: ±12 V and ±15 VDC
● 2x MOPP and 2 µA leakage current
● 5.0 kV enhanced isolation and 250 VACRMS operating voltage
● IEC/ES/EN60601-1 Safety Body certification
● IEC 60601-1-2 Ed 4.0 EMC Certification
● Continuous short circuit protection, with automatic recovery function
● Remote on/Off with very low standby current of 2.5 mA
● Full load operating temperature range from -40°C to +85°C

Applications

● Endoscopic image processing
● Respiratory therapy
● Edema therapy
● Surgical robot
● Drug delivery
● Oximeter
● Virus detection
● Dialysis
