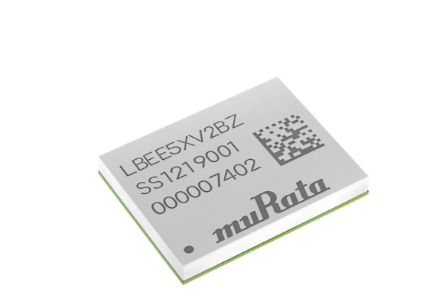

Murata Type 2BZ Wi-Fi + Bluetooth module
Type 2BZ Wi-Fi+ Bluetooth module (LBEE5XV2BZ) from Murata. The Type 2BZ Wi-Fi+ Bluetooth module provides engineers with a dual-band small wireless connectivity solution for power-sensitive applications such as the Internet of Things (IoT), handheld wireless devices, gateways, smart home and industrial.
The Murata Type 2BZ Wi-Fi+ Bluetooth module is a small, high-performance wireless connectivity module based on Infineon CYW54590 Combo chipset. The Type 2BZ module features highly sophisticated enhanced cooperative coexistence hardware mechanisms and algorithms that ensure optimized wireless local Area Network (WLAN) collaboration with Bluetooth for improved performance, with PHY (physical) data rates of up to 866 Mbps on Wi-Fi connections and 3 Mbps on Bluetooth connections.
The WLAN portion of the Type 2BZ module supports a secure Digital Input/Output (SDIO) v3.0 interface, while the Bluetooth portion supports a high-speed 4-wire universal Asynchronous transceiver (UART) interface and pulse code modulation (PCM) for audio data. In IEEE 802.11ac mode, WLAN operating in 20 MHz, 40 MHz, and 80 MHz channels can provide rates up to 256 quadrature amplitude modulation (QAM), Supports Wi-Fi 802.11a/b/g/n/ac and 2×2 Multiple input Multiple Output (MIMO) +5.2 BR/EDR/LE (Bluetooth basic rate/Enhanced data rate/Low power). The module is available in a very compact package size for size - and power-sensitive industrial applications with operating temperatures up to +85℃.
