Panasonic's SP-Caps are extremely durable under high temperature and humidity conditions and have a long product life

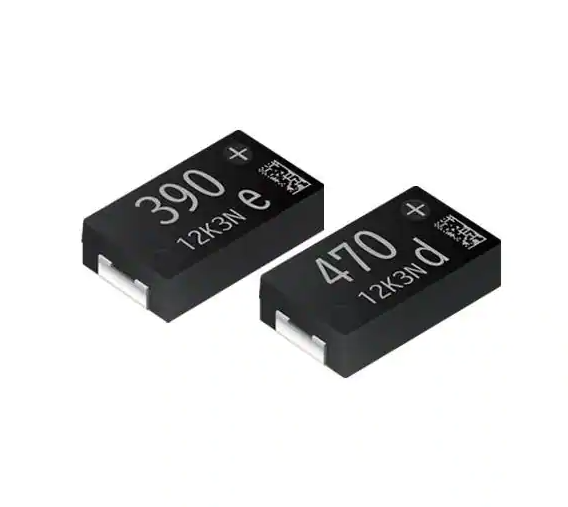

Panasonic's EEF-JX series of surface-mounted special conducting polymer aluminium electrolytic capacitors provide a high durability of 3,000 hours at 125°C and an extremely long service life. Using Panasonic's proprietary conductive polymer molding and manufacturing process technology, the EEF-JX series offers three times higher high-temperature reliability than other existing products.

Panasonic's EEF-JX series SP-Cap offers low resistance of 9 mΩ (maximum). High durability for 1,000 hours under ESR and high temperature and humidity conditions at +85°C/85% moisture stable state. SP-Cap also has large capacitance characteristics, making it ideal for harsh industrial applications.

Panasonic's EEF-JX series SP-Cap is just 1.9mm tall but combines all of these specifications to redefine the term 'specialty capacitor'. The capacitors which save space, have high reliability, long life, high humidity resistance and large capacity are the necessary conditions for the stability of power supply circuit.

Features

● Low ESR: Maximum 9 mΩ.
● Capacitance range: 220 µF to 470 µF (Max.)
● Long service life at high temperature: 3,000 hours at +125°C
● Ripple current range: 6,300 mARMS
● Product height: Maximum 1.9mm
● Operating temperature range: -55°C to +125°C
● Comply with RoHS/REACH specification
● Halogen-free

Applications

● Servers and data centers
● Communication interface
● Industrial equipment
● Power circuits for CPU, GPU, FPGA and ASIC on the base station
● Intelligence scale
● Power management system
● Network equipment
● Other capacitor applications
