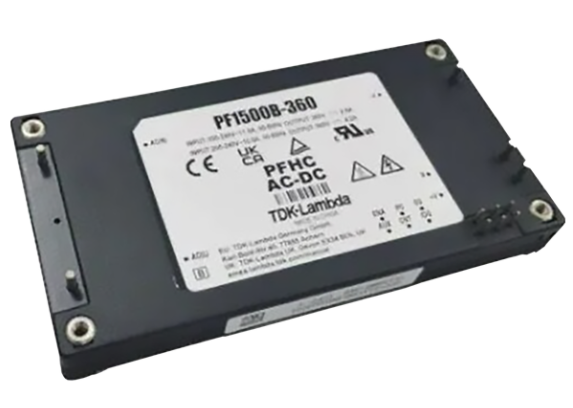

TDK-Lambda PF1500B-360 power factor correction module
The TDK-Lambda PF1500B-360 power factor correction module has A 360V rated voltage, A maximum current of 2.8A to 4.2A, and a maximum power rating of 1512W. The PF1500B-360 converts AC to a regulated 360VDC and is intended for distributed power systems using isolated HVDC to DC converters or loads requiring high voltage sources.
The substrate is cooled by conduction through a cooling plate or by using an optional heat sink and external air flow. The module can be connected in parallel for additional power supply. TDK-Lambda PF1500B-360 power factor correction module with auxiliary output and inverter good signal for control and monitoring.
Features
● Suitable for developing custom power supply
● Compact all-brick package
● Conduction cooling through the substrate
● Suitable for harsh environment
Specification
● Output voltage: 360V
● Maximum current: 2.8A to 4.2A
● Maximum power: 1008W to 1512W
● Input frequency range: 47Hz to 63Hz
● Power factor: > 0.98
● Package size: 116.8mm x 61mm x 12.7mm
● Operating temperature range
-40°C to +100°C (substrate)
-40°C to +85°C (Environment)
